35kv heat shrink busbar tube

35kv heat shrink busbar tube is made of a composite material mixed with radiation cross-linked polyolefins. It is made through multiple production processes and has excellent physical, chemical and electrical properties. Its main functions are electrical insulation of connectors, anti-rust and anti-corrosion of solder joints, Mechanical protection, reducing phase spacing, etc., widely used in insulation protection of busbars in 10kv-35kv substations, distribution cabinets, etc.

specifications: Φ30mm~Φ150mm;

shrink ratio: 2:1

Product use temperatur: -40℃～60℃

Environmental protection standards: RoHS

Recommended shrinkage temperature: 125℃;

 Transverse shrinkage: ≥50%; Longitudinal shrinkage: ≤8%;

 Rated voltage: 26-35KV;

 Product packaging: 20 meters/rpll; 1 meter/piece;

 Standard colors: red (rust red), yellow, green, other colors can be customized;

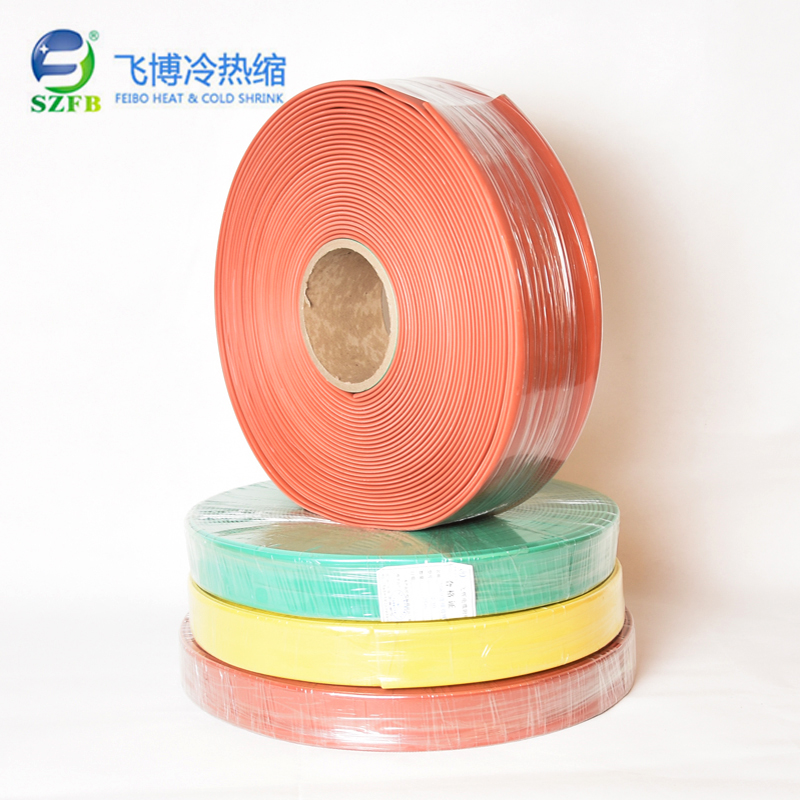

From the picture ,it’s our normal package,certainly ,The package of heat shrinkable tube can be changed according to your inquiry.






1.Inquiry:Every inquiry for heat shrinkable tube should be appreciated and answered in time.
2.Sample:The sample of heat shrinkable tube can be customized for free, you just need to pay for the freight.
3.Price:The price of heat shrinkable tube can be discounted if you order again.
4.Prepare & shipment :These heat shrinkable tube would be prepared after your deposit and confirmation in 7 days.
5.Cooperation:We kindly welcome every customer to visit our factory and we can cooperate with  a happy and beneficial atmosphere in the future.
