Product Introduction

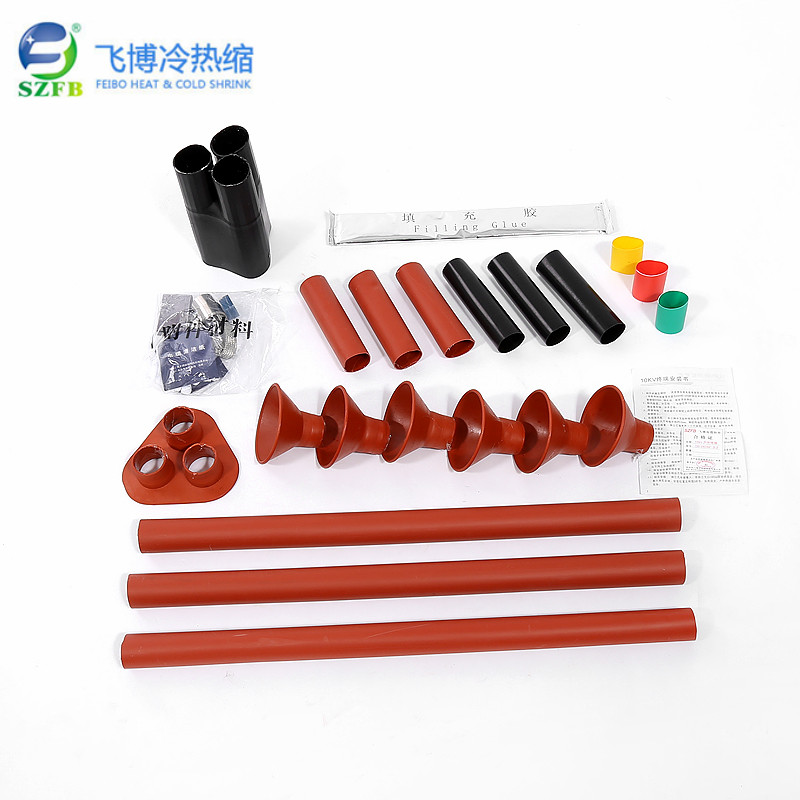

Heat Shrink Cable Terminal is one of the essential high voltage cable accessories, specially designed for termination insulation and sealing protection of copper and aluminum XLPE power cables. It adopts advanced radiation cross-linked polyolefin material, with excellent dielectric strength, flame retardancy and environmental adaptability.
Product Features
1. High Voltage Resistance: Standard 10kV, 35kV high voltage grade, stable insulation performance, no breakdown under high voltage operation.
2. Excellent Sealing: Heat shrink tightly fits cable core, effectively prevent water vapor, dust and moisture infiltration.
3. Flame Retardant & Anti-aging: Self-extinguishing grade material, long service life for indoor and outdoor harsh environments.
4. Easy Installation: Fast heating shrinkage, no complex tools required, save construction time and labor cost.
5. Universal Compatibility: Suitable for single-core, three-core copper and aluminum power cables of different cross-sections.
| SPEC | PRODUCTS | SUITABLE FOR CALBE | SPEC | PRODUCTS | SUITABLE FOR CALBE |
| NSY-10/1×1 | 8.7-15KV SINGLE CORE INDOOR HEAT SHRINK TERMINATION | 25-50mm² | NSY-10/3×1 | 8.7-15KV THREE CORES INDOOR HEAT SHRINK TERMINATION | 25-50mm² |
| NSY-10/1×2 | 70-120mm² | NSY-10/3×2 | 70-120mm² | ||
| NSY-10/1×3 | 150-240mm² | NSY-10/3×3 | 150-240mm² | ||
| NSY-10/1×4 | 300-400mm² | NSY-10/3×4 | 300-400mm² | ||
| WSY-10/1×1 | 8.7-15KV SINGLE CORE OUTDOOR HEAT SHRINK TERMINATION | 25-50mm² | WSY-10/3×1 | 8.7-15KV THREE CORES OUTDOOR HEAT SHRINK TERMINATION | 25-50mm² |
| WSY-10/1×2 | 70-120mm² | WSY-10/3×2 | 70-120mm² | ||
| WSY-10/1×3 | 150-240mm² | WSY-10/3×3 | 150-240mm² | ||
| WSY-10/1×4 | 300-400mm² | WSY-10/3×4 | 300-400mm² | ||
| JSY-10/1×1 | 8.7-15KV SINGLE CORE HEAT SHRINK CABLE JOINT | 25-50mm² | JSY-10/3×1 | 8.7-15KV THREE CORES HEAT SHRINK TERMINATION | 25-50mm² |
| JSY-10/1×2 | 70-120mm² | JSY-10/3×2 | 70-120mm² | ||
| JSY-10/1×3 | 150-240mm² | JSY-10/3×3 | 150-240mm² | ||
| JSY-10/1×4 | 300-400mm² | JSY-10/3×4 | 300-400mm² |
Application Scenarios

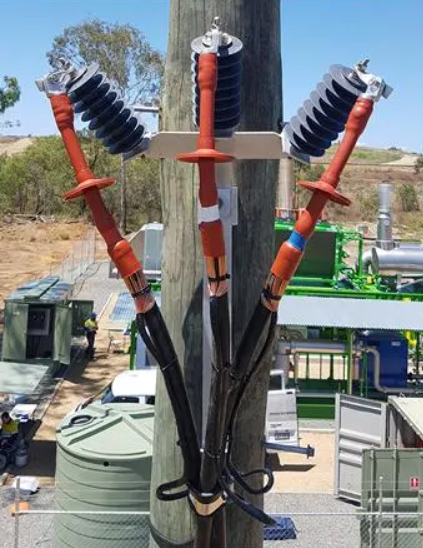

Widely applied in power grid distribution, substation equipment, industrial and mining electrical systems, building power engineering, outdoor overhead lines and complete switchgear projects.
Specifications
• Voltage Level: 10kV, 35kV
• Type: Indoor Type / Outdoor Type
• Applicable Cable: Copper Cable, Aluminum Cable, XLPE Insulated Power Cable
• Material: Radiation Cross-linked Polyolefin
