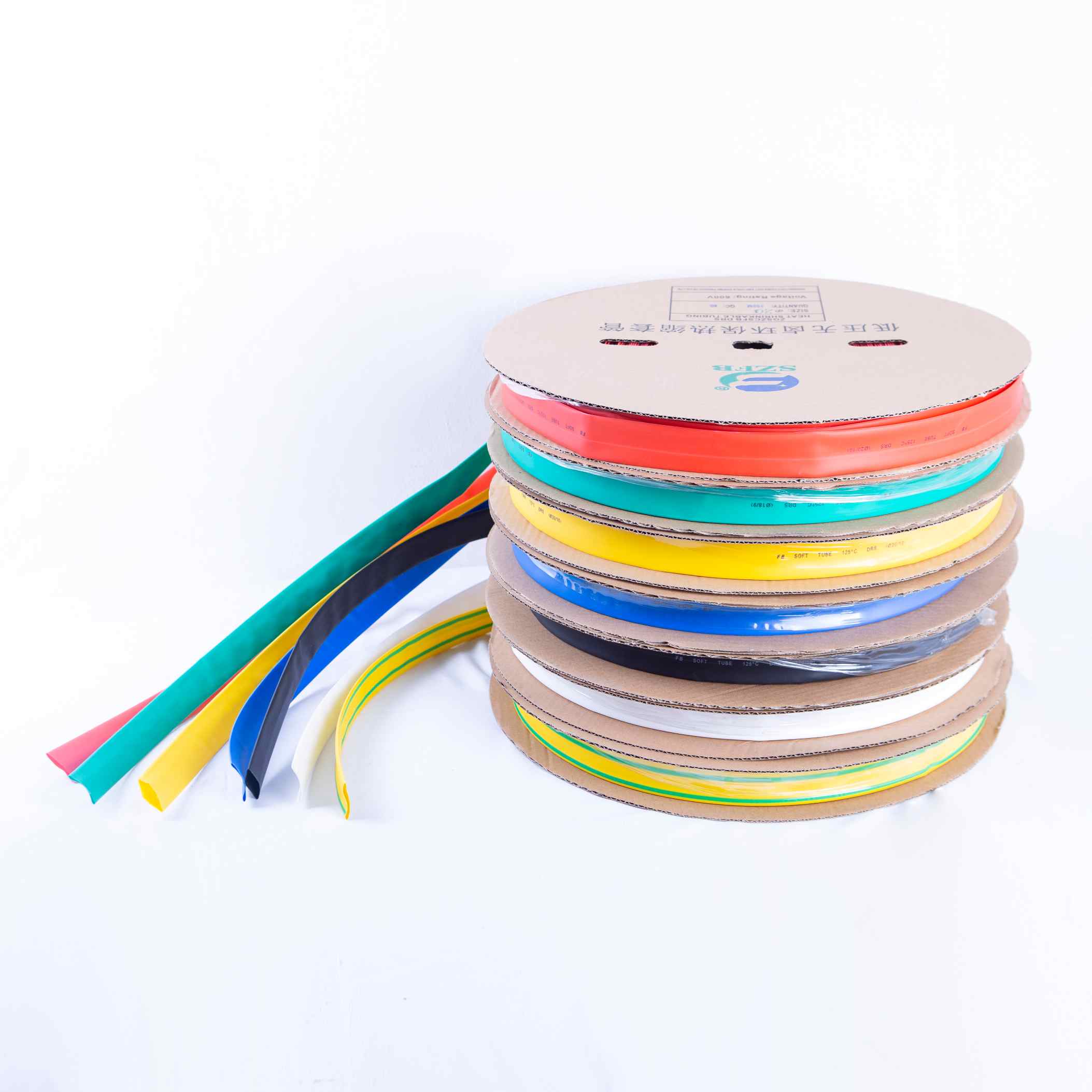

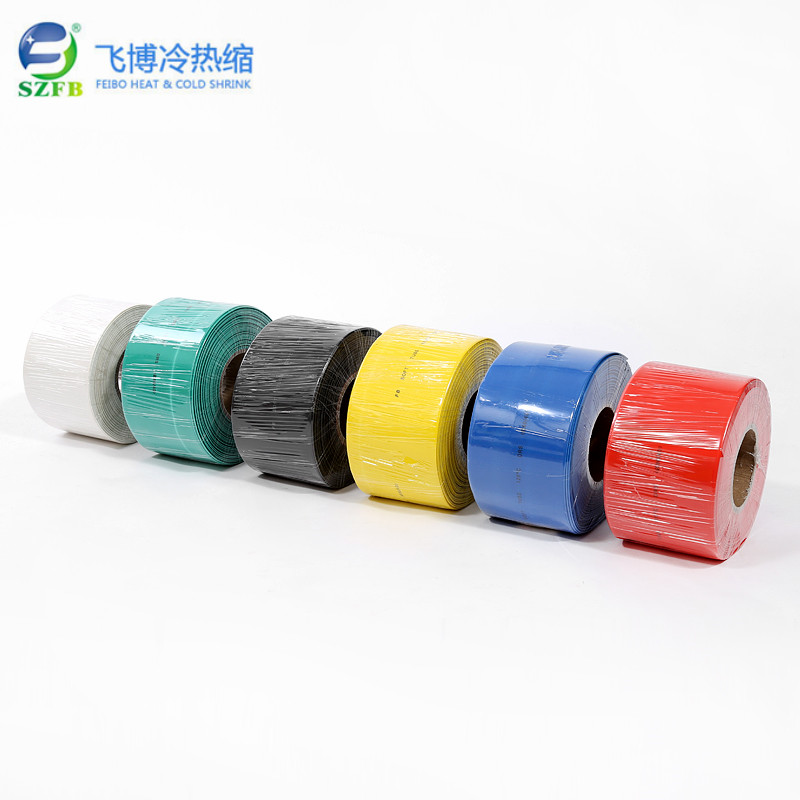

1KV heat shrink tube
Product name: 1KV heat shrink tube
Brand name: FeiBo
Material: PE
Size: Φ2mm-Φ200mm
Color: Black, Red, Yellow, Green, Blue, two-color, etc.(Other colors can be customized.)
Operating temperature: -55℃～125℃
Complete shrink temperature: 125℃
Temperature rating: 125℃
Lateral shrinkage rate: ≥50%
Longitudinal shrinkage rate: ≤8%
Rated voltage: 1KV
Product packaging:
| Φ2mm-Φ4mm | 200m/roll |
| Φ5mm-Φ22mm | 100m/ roll |
| Φ25mm-Φ200mm | 25m/ roll |
Features: With excellent flame retardant, environmental protection, insulation, soft, stable performance, low shrinkage temperature, rapid contraction;
Applications: mainly used for wire connection, solder joint protection, wire end wiring harness, electronic device protection and insulation treatment, parts and metal surface protection, related products rust, corrosion treatment, wire and other product identification.
Here are the parameters of heat shrinkable tube for your reference.
| Product Code(mm) | Before Shrink | After Shrink | Package M/Roll | ||
| ID(mm) | Thickness(mm) | ID(mm) | Thickness(mm) | ||
| DRS-￠2.0 | 2.5±0.2 | 0.16±0.03 | ≤0.5 | 0.33±0.05 | 200 |
| DRS-￠3.0 | 3.5±0.2 | 0.18±0.05 | ≤1.5 | 0.35±0.05 | 200 |
| DRS-￠3.5 | 4.0±0.2 | 0.18±0.05 | ≤1.75 | 0.40±0.05 | 200 |
| DRS-￠4.0 | 4.5±0.2 | 0.20±0.05 | ≤2.0 | 0.40±0.05 | 200 |
| DRS-￠5.0 | 5.5±0.3 | 0.20±0.08 | ≤2.5 | 0.40±0.08 | 100 |
| DRS-￠6.0 | 6.5±0.3 | 0.20±0.08 | ≤3.0 | 0.40±0.08 | 100 |
| DRS-￠7.0 | 7.5±0.3 | 0.20±0.08 | ≤3.5 | 0.42±0.08 | 100 |
| DRS-￠8.0 | 8.5±0.3 | 0.20±0.08 | ≤4.0 | 0.42±0.08 | 100 |
| DRS-￠9.0 | 9.6±0.3 | 0.22±0.08 | ≤4.5 | 0.45±0.08 | 100 |
| DRS-￠10.0 | 10.6±0.4 | 0.22±0.08 | ≤5.0 | 0.45±0.08 | 100 |
| DRS-￠12.0 | 12.6±0.4 | 0.22±0.10 | ≤6.0 | 0.45±0.10 | 100 |
| DRS-￠14.0 | 14.6±0.4 | 0.23±0.10 | ≤7.0 | 0.46±0.10 | 100 |
| DRS-￠15.0 | 15.6±0.5 | 0.23±0.10 | ≤7.5 | 0.46±0.10 | 100 |
| DRS-￠16.0 | 16.6±0.5 | 0.25±0.10 | ≤8.0 | 0.50±0.10 | 100 |
| DRS-￠18.0 | 18.6±0.5 | 0.25±0.10 | ≤9.0 | 0.55±0.10 | 100 |
| DRS-￠20.0 | 20.6±0.6 | 0.25±0.10 | ≤10.0 | 0.55±0.10 | 100 |
| DRS-￠22.0 | 22.6±0.6 | 0.28±0.10 | ≤11.0 | 0.60±0.10 | 100 |
| DRS-￠25.0 | 25.6±0.6 | 0.30±0.10 | ≤12.0 | 0.65±0.10 | 25 |
| DRS-￠30.0 | 30.8±0.8 | 0.33±0.10 | ≤15.0 | 0.70±0.10 | 25 |
| DRS-￠35.0 | 36.0±1.0 | 0.35±0.10 | ≤17.5 | 0.75±0.10 | 25 |
| DRS-￠40.0 | 41.0±1.0 | 0.35±0.10 | ≤20.0 | 0.75±0.10 | 25 |
| DRS-￠50.0 | 51.0±1.0 | 0.40±0.10 | ≤25.0 | 0.80±0.10 | 25 |
| DRS-￠60.0 | 61.0±1.0 | 0.40±0.10 | ≤30.0 | 0.80±0.10 | 25 |
| DRS-￠70.0 | 71.0±1.0 | 0.40±0.10 | ≤35.0 | 0.80±0.10 | 25 |
| DRS-￠80.0 | 81.0±2.0 | 0.45±0.10 | ≤40.0 | 0.90±0.10 | 25 |
| DRS-￠90.0 | 91.0±2.0 | 0.45±0.10 | ≤45.0 | 0.90±0.10 | 25 |
| DRS-￠100 | 102.0±2.0 | 0.50±0.10 | ≤50.0 | 1.0±0.20 | 25 |
| DRS-￠120 | 122.0±2.0 | 0.50±0.10 | ≤60.0 | 1.0±0.20 | 25 |
| DRS-￠150 | 152.0±2.0 | 0.50±0.10 | ≤75.0 | 1.0±0.20 | 25 |
| DRS-￠180 | 182.0±2.0 | 0.65±0.10 | ≤90.0 | 1.0±0.20 | 25 |
| DRS-￠200 | 202.0±2.0 | 0.70±0.10 | ≤100.0 | 1.45±0.20 | 25 |
From the picture ,it’s our normal package,certainly ,The package of heat shrinkable tube can be changed according to your inquiry.
1.Inquiry:Every inquiry for heat shrinkable tube should be appreciated and answered in time.
2.Sample:The sample of heat shrinkable tube can be customized for free, you just need to pay for the freight.
3.Price:The price of heat shrinkable tube can be discounted if you order again.
4.Prepare & shipment :These heat shrinkable tube would be prepared after your deposit and confirmation in 7 days.
5.Cooperation:We kindly welcome every customer to visit our factory and we can cooperate with a happy and beneficial atmosphere in the future.
