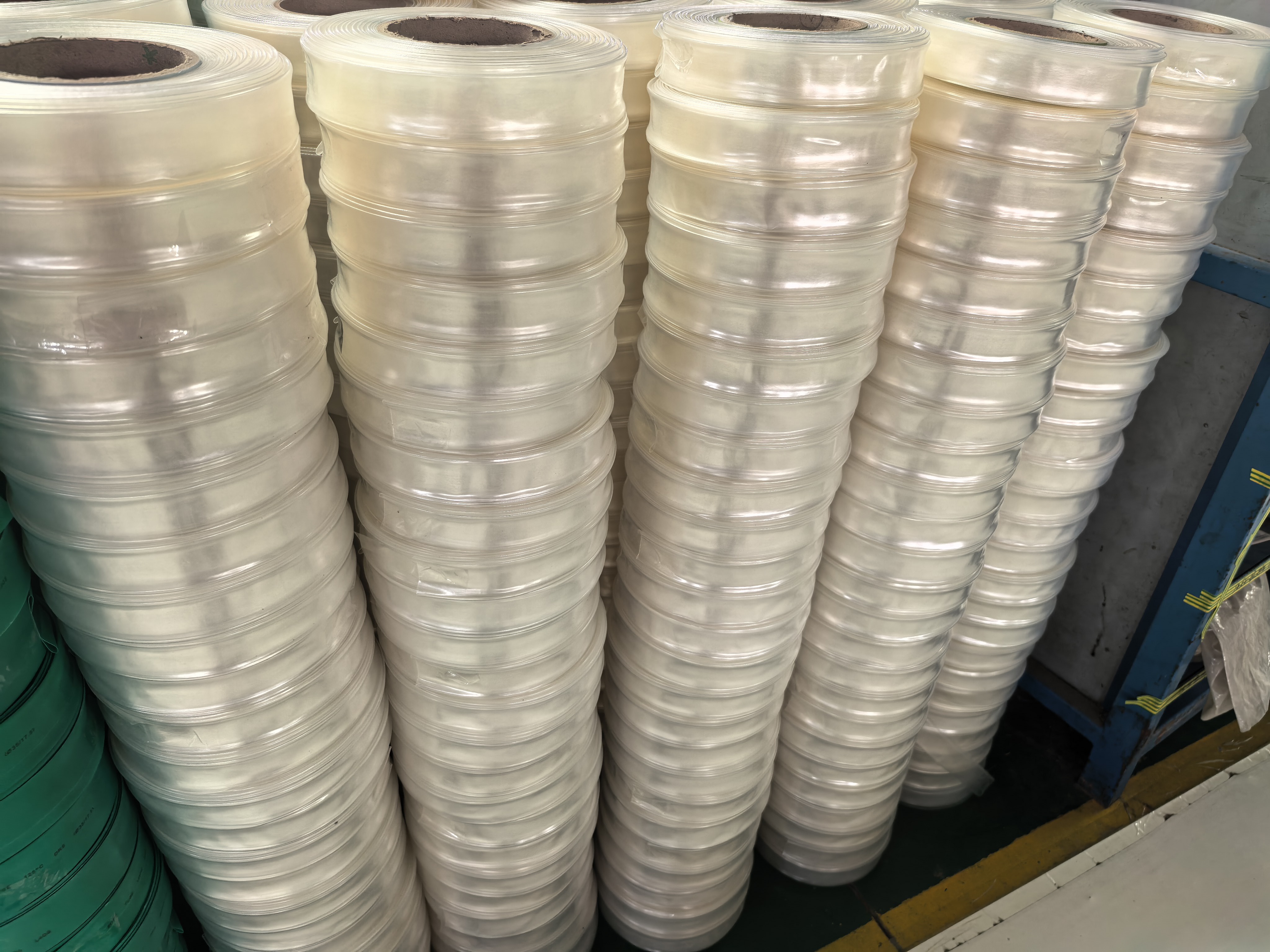

Low Shrink Temperature Clear Tubing

Product Name: Low Voltage Clear Heat Shrink Tubing

Place of Origin: China

Product Description

Low Voltage Clear Heat Shrink Tubing is made of high quality polyolefin material with 2:1 shrink ratio. It provides excellent electrical insulation, flame retardant and waterproof protection for low voltage applications. The transparent design allows visual inspection of internal wires and components after shrinking.

Key Features

Feature	Description
Transparent Design	Easy to inspect internal wires and soldering points
2:1 Shrink Ratio	Shrinks to half of its original diameter
Flame Retardant	UL VW-1 rating, self-extinguishing
Good Insulation	Withstand voltage up to 600V
Waterproof	Seals and protects against moisture
Wide Temperature Range	-55℃ to +125℃

Size	Packing (M/Roll)	Inner diameter before shrink (mm)	Inner diameter after shrink (mm)	Wall thickness before shrink (mm)	Wall thickness after shrink (mm)
1KV heat shrink tubing
Ф3	200m/roll	3.5±0.2	≤ 1.5	0.18±0.05	0.35±0.05
Ф4	200m/roll	4.5±0.2	≤2.0	0.18±0.05	0.35±0.05
Ф5	100m/roll	5.5±0.3	≤2.5	0.20±0.08	0.40±0.08
Ф6	100m/roll	6.5±0.3	≤3.0	0.20±0.08	0.40±0.08
Ф8	100m/roll	8.5±0.3	≤4.0	0.20±0.08	0.42±0.08
Ф9	100m/roll	9.6±0.3	≤4.0	0.2±0.08	0.45±0.08
Ф10	100m/roll	10.6±0.4	≤5.0	0.22±0.08	0.45±0.08
Ф12	100m/roll	12.6±0.4	≤6.0	0.24±0. 10	0.48±0. 10
Ф14	100m/roll	14.6±0.4	≤7.0	0.24±0. 10	0.48±0. 10
Ф15	100m/roll	15.6±0.5	≤7.5	0.24±0. 10	0.48±0. 10
Ф16	100m/roll	16.6±0.5	≤8.0	0.26±0. 10	0.52±0. 10
Ф18	100m/roll	18.6±0.5	≤9.0	0.26±0. 10	0.52±0. 10
Ф20	100m/roll	20.6±0.6	≤ 10.0	0.31±0. 10	0.62±0. 10
Ф22	100m/roll	22.6±0.6	≤ 11.0	0.31±0. 10	0.62±0. 10
Ф25	25m/roll	25.6±0.6	≤ 12.0	0.34±0. 10	0.68±0. 10
Ф30	25m/roll	30.8±0.8	≤ 15.0	0.35±0. 10	0.70±0. 10
Ф35	25m/roll	36.0± 1.0	≤ 17.5	0.36±0. 10	0.72±0. 10
Ф40	25m/roll	41.0± 1.0	≤20.0	0.39±0. 10	0.78±0. 10
Ф50	25m/roll	51.0± 1.0	≤25.0	0.40±0. 10	0.80±0. 10
Ф60	25m/roll	61.0± 1.0	≤30.0	0.40±0. 10	0.80±0. 10
Ф70	25m/roll	71.0± 1.0	≤35.0	0.41±0. 10	0.82±0. 10
Ф80	25m/roll	81.0±2.0	≤40.0	0.43±0. 10	0.85±0. 10
Ф90	25m/roll	91.0±2.0	≤45.0	0.43±0. 10	0.85±0. 10
Ф100	25m/roll	102.0±2.0	≤50.0	0.46±0. 10	0.92±0.20
Ф120	25m/roll	122.0±2.0	≤60.0	0.50±0. 10	1.0±0.20
Ф150	25m/roll	152.0±2.0	≤75.0	0.55±0. 10	1.1±0.20
Ф180	25m/roll	182.0±2.0	≤90.0	0.65±0. 10	1.3±0.20
Ф200	25m/roll	202.0±2.0	≤ 100.0	0.70±0. 10	1.4±0.20

Applications

Electrical wire and cable insulation
Soldered joint protection
Component packaging and sealing
Wire bundling and organization
Anti-corrosion protection for metal parts
DIY electronics projects
Automotive wiring harness
Household appliance wiring

Packaging & Delivery

Item	Details

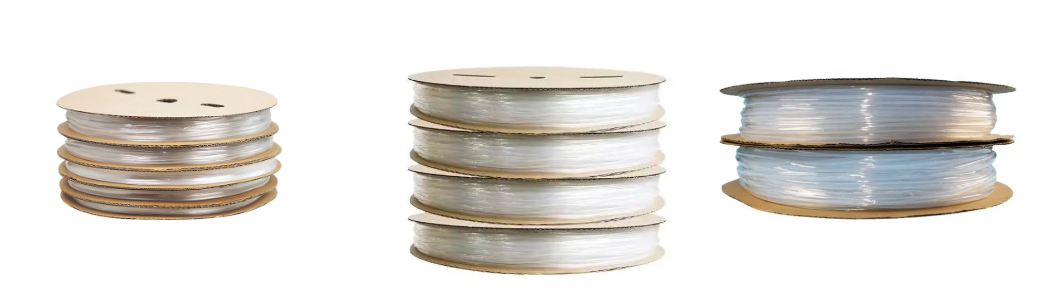

Packaging	Roll pack or cut pieces as required
Standard Length	100m, 200m per roll (or cut to 1m/1.22m pieces)
Delivery Time	3-7 days for stock items; 15-20 days for custom orders
Shipping	By express, air, or sea freight

Why Choose Us?

Factory Direct – Competitive prices with no middlemen
Quality Guaranteed – Strict quality control from raw material to finished product
Custom Support – Accept OEM orders for size, color, printing, and packaging
Fast Delivery – Abundant stock for quick shipment
Free Samples – Contact us for free samples
