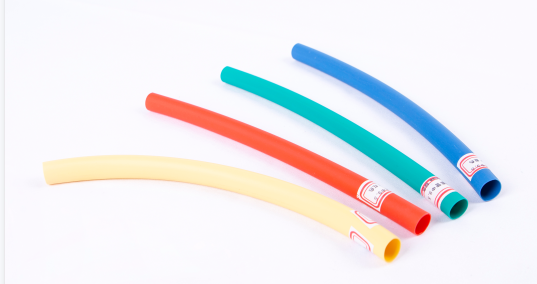

Dual Wall Heat Shrink Tubing With Adhesive
Product Description
Name：3:1 heat shrink tubing/dual wall heat shrink tubing with adhesive
Dual wall heat-shrinkable tubing with adhesive: The outer layer is made of high-quality, soft cross-linked polyolefin material, and the inner layer is made of melt-glue composite. The outer material has the advantages of insulation, anti-corrosion and wear resistance, while the inner material has the advantages of low melting point, waterproof, sealing and high adhesion. Double-walled tubes are widely used in many occasions such as waterproofing and air leakage prevention for electronic equipment wiring; anti-corrosion protection at wire branches, repair of wires and cables, and waterproof wiring for water pumps and submersible pumps.
Features: environmental protection, insulation, soft, stable performance, low shrinkage temperature, rapid contraction;
Applications: mainly used for wire connection, solder joint protection, wire end wiring harness, electronic device protection and insulation treatment, parts and metal surface protection, related products rust, corrosion treatment, wire and other product identification.
Parameters
| Products | Shrink ratio | Size | Before Shrinkable | After Shrinkable | Standard Package | |||
| Diameter (mm) | Min I.D. | Wall thickness | Max I.D. | Total W.T | Adhesive thickness | m/spool | ||
| Dual Wall Heat Shrink Tube | 3:1 | Φ1.6 | ≥1.6 | 0.35±0.15 | ≤0.6 | 0.65±0.15 | 0.30±0.10 | 200 |
| Φ2.4 | ≥2.4 | 0.38±0.15 | ≤1.0 | 0.70±0.15 | 0.35 ±0.10 | 200 | ||
| Φ3.2 | ≥3.2 | 0.42±0.15 | ≤1.3 | 0.90 ±0.30 | 0.40 ±0.20 | 200 | ||
| Φ4.8 | ≥4.8 | 0.5±0.15 | ≤1.7 | 1.05 ±0.30 | 0.40 ±0.20 | 100 | ||
| Φ6.4 | ≥6.4 | 0.53±0.15 | ≤2.5 | 1.25±0.30 | 0.45 ±0.20 | 100 | ||
| Φ7.9 | ≥7.9 | 0.55±0.15 | ≤2.8 | 1.30±0.30 | 0.45 ±0.20 | 100 | ||
| Φ9.5 | ≥9.5 | 0.6±0.15 | ≤3.2 | 1.45±0.30 | 0.50 ±0.20 | 50 | ||
| Φ10.5 | ≥10.5 | 0.57±0.15 | ≤3.6 | 1.45±0.30 | 0.50 ±0.20 | 50 | ||
| Φ12.7 | ≥12.7 | 0.68±0.15 | ≤4.6 | 1.70±0.30 | 0.50 ±0.20 | 50 | ||
| Φ15 | ≥15 | 0.75±0.2 | ≤5.6 | 1.80±0.30 | 0.55 ±0.30 | 25 | ||
| Φ19.1 | ≥19.1 | 0.78±0.2 | ≤6.8 | 1.95±0.30 | 0.60 ±0.30 | 25 | ||
| Φ25.4 | ≥25.4 | 0.8±0.2 | ≤9.5 | 2.05±0.40 | 0.60 ±0.30 | 25 | ||
| Φ30 | ≥30.0 | 0.85±0.25 | ≤12 | 2.20±0.40 | 0.65 ±0.30 | 25 | ||
| Φ35 | ≥35.0 | 0.85±0.25 | ≤12.00 | 2.20±0.40 | 0.65±0.30 | 25 | ||
| Φ39 | ≥39.0 | 0.9±0.25 | ≤15 | 2.50±0.40 | 0.75 ±0.30 | 25 | ||
| Φ50 | ≥50.0 | 0.95±0.3 | ≤19 | 2.80±0.40 | 0.80 ±0.30 | 25 | ||
| Φ60 | ≥60.0 | 0.95±0.3 | ≤23 | 3.20±0.40 | 1.05 ±0.30 | 25 | ||
| Φ64 | ≥64.0 | 0.95±0.3 | 25 | |||||
| Φ70 | ≥70.0 | 0.95±0.3 | 25 | |||||
| Φ75 | ≥75.0 | 0.95±0.3 | ≤25 | 3.20±0.50 | 1.05 ±0.40 | 25 | ||
| Φ80 | ≥80.0 | 1.0±0.3 | ≤27 | 3.20±0.50 | 1.05 ±0.40 | 25 | ||
| Φ90 | ≥90.0 | 1.0±0.3 | ≤33 | 3.30±0.50 | 1.05 ±0.40 | 25 | ||
| Φ100 | ≥100 | 1.0±0.3 | ≤34 | 3.8±0.50 | 1.20 ±0.40 | 25 | ||
| Φ110 | ≥110 | 1.0±0.3 | 25 | |||||
| Φ125 | ≥125 | 1.0±0.3 | ≤42 | 3.8±0.50 | 1.20 ±0.40 | 25 | ||
| Φ130 | ≥130 | 1.0±0.3 | ≤44 | 3.8±0.50 | 1.20 ±0.40 | 25 | ||
Package
From the picture ,it’s our normal package,certainly ,The package of heat shrinkable tube can be changed according to your inquiry.
Advantage
Notice
1.Inquiry:Every inquiry for heat shrinkable tube should be appreciated and answered in time.
2.Sample:The sample of heat shrinkable tube can be customized for free, you just need to pay for the freight.
3.Price:The price of heat shrinkable tube can be discounted if you order again.
4.Prepare & shipment :These heat shrinkable tube would be prepared after your deposit and confirmation in 7 days.
5.Cooperation:We kindly welcome every customer to visit our factory and we can cooperate with a happy and beneficial atmosphere in the future.
