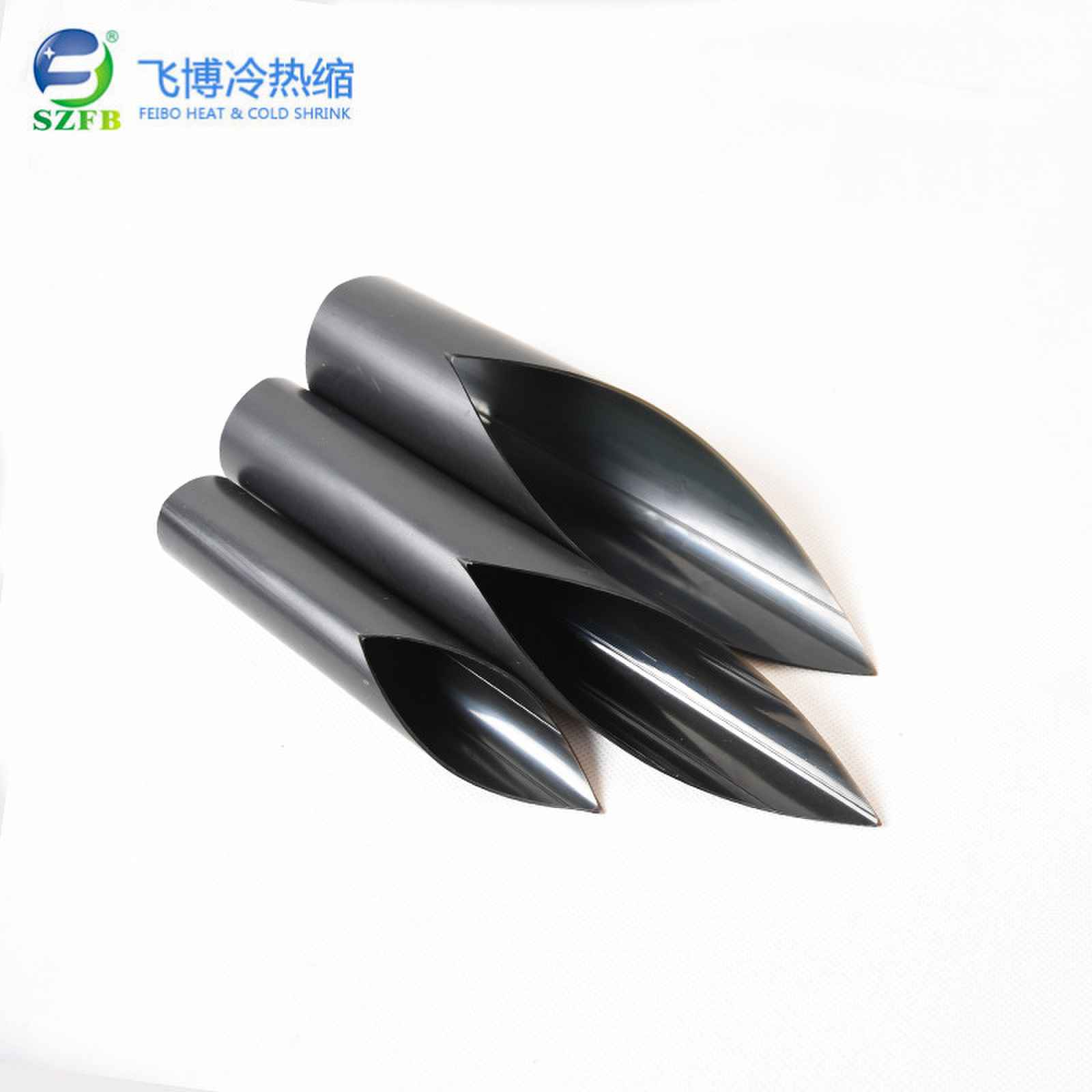

Product Name: 1.22m Glued Medium-wall tube
1.22m Glued Medium-wall tube is composed of a dual-layer structure: semi-rigid polyolefin as the outer layer and thermally activated adhesive as the inner layer. This product provides dual functions of electrical insulation and sealing/waterproofing. It is primarily used for insulation protection in medium and low-voltage cable terminations or intermediate joints, as well as for corrosion resistance and abrasion protection in various types of pipelines.
The 1.22m Glued Medium-wall tube offers excellent insulation, sealing, impact resistance, and wear resistance. The inner wall is coated with a thermally activated adhesive, making it suitable for waterproof sealing and insulation protection at cable terminations and connection points. Its high 3:1 shrinkage ratio accommodates irregular shapes and varying sizes of connection points, meeting diverse insulation requirements.
Product Features:
Shrink Ratio: 3:1
Full Shrink Temperature: ≥125°C
Operating Temperature: -45°C to +125°C
UV Resistant
Environmental Standard: ROHS
Standard Color: Black (other colors customizable)
| Outer Layer Technical Indicators | ||
| Performance | Parameter | Test Methods |
| Tensile Strength | ≥14 MPa | ASTM D 2671 |
| Elongation at Break | ≥400% | ASTM D 2671 |
| Strength After Thermal Aging | ≥12 MPa | 158℃×168h |
| Elongation at Break After Thermal Aging | ≥300% | 158℃×168h |
| Axial Change Rate | -8%~+8% | ASTM D 2671 |
| Dielectric Strength | ≥20kV/mm | IEC 60243 |
| Volume Resistivity | ≥1014Ω.cm | IEC 60093 |
| Water Absorption | ＜0.5% | ASTM D 570 |
| Thermal Shock | Crack-Free&No Dripping | 225℃×4h |
| Specification | As Supplied Inner Diameter (mm) | Recovered Inner Diameter (mm) | Wall Thickness (mm) |
| 28/9 | 27.5 | 9 | 1.05 |
| 35/12 | 32.5 | 12 | 1.05 |
| 40/13 | 37.5 | 13 | 1.1 |
| 45/13 | 42.5 | 13 | 1.05 |
| 50/15 | 47.5 | 15 | 1.15 |
| 55/16 | 52.5 | 15 | 1.1 |
| 65/19 | 62.5 | 19 | 1.15 |
| 75/22 | 72.5 | 22 | 1.2 |
| 85/25 | 82.5 | 25 | 1.2 |
| 100/30 | 97.5 | 30 | 1.25 |
| 115/34 | 112.5 | 34 | 1.25 |
| 130/36 | 127.5 | 36 | 1.3 |
| 145/42 | 142.5 | 42 | 1.3 |
| 160/50 | 157.5 | 50 | 1.3 |
| 175/58 | 172.5 | 58 | 1.3 |
| 200/65 | 197.5 | 65 | 1.3 |
From
the picture ,it’s our normal package,certainly ,The package of heat
shrinkable tube can be changed according to your inquiry.
1.Inquiry:Every inquiry for heat shrinkable tube should be appreciated and answered in time.
2.Sample:The sample of heat shrinkable tube can be customized for free, you just need to pay for the freight.
3.Price:The price of heat shrinkable tube can be discounted if you order again.
4.Prepare & shipment :These heat shrinkable tube would be prepared after your deposit and confirmation in 7 days.
5.Cooperation:We
kindly welcome every customer to visit our factory and we can cooperate
with a happy and beneficial atmosphere in the future.
