Heat Shrink Tubing Insulation Performance

Wondering why heat shrink tubing's insulation is so effective? This guide breaks down its performance, how it works, and how to choose the right tubing for optimal protection and cost savings.

When it comes to protecting electrical components, the insulation performance of heat shrink tubing is its most critical feature. This superior insulation capability is the primary reason why engineers and professionals across industries rely on it for durable and safe protection.

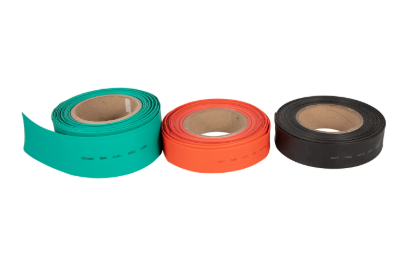

Heat shrink tubingis an innovative polymer product manufactured through a precise five-step process: pelletizing, extrusion, irradiation, expansion, and packaging. It is supplied to customers in convenient coiled or rolled forms. While packaging and size specifications vary, the core production process ensures consistent quality, with different molds creating tubing for various applications.

While some users select heat shrink tubing for color-coding purposes, the overwhelming majority choose it for its excellent insulation properties. This performance is what effectively shields wires and components from electrical shorts, moisture, corrosion, and physical damage.

For those familiar with these products, it's well-known that heat shrink tubing offers a highly cost-effective solution. By using it to protect a critical component, you achieve a high level of security and longevity at a relatively low cost.

Material: The tubing is made from premium polymer materials like polyolefin, which are inherently excellent insulators.

Processing: The key step is irradiation by an electron accelerator. This process cross-links the polymer chains, giving the tubing its unique "memory" and ability to shrink.

Application: When heat is applied, the tubing shrinks radially to form a tight, conformal seal around the object. This seamless barrier provides uniform insulation and protection, preventing ingress of contaminants and enhancing electrical safety.

Selecting the correct size is paramount to achieving the promised insulation effect. Here’s a simple guideline:

Expanded Inner Diameter: The tubing should be slightly larger than the object you need to cover before heating.

Recovered Inner Diameter: After shrinking, the tubing's final diameter should be smaller than the object, ensuring a tight fit.

Choosing a size too large will prevent it from shrinking properly, leaving gaps. A size too small will be impossible to install. The right fit ensures optimal protective performance and long-term reliability.

In summary, the insulation performance of heat shrink tubing is a non-negotiable feature for ensuring safety and durability. It helps minimize operational losses, extends the service life of valuable assets, and provides engineers with complete peace of mind.
